What Makes an MEP Drawing Set ‘Permit-Ready’ And Why It Matters

When an MEP drawing set stalls at permit review, the cost is immediate: project delays, correction cycles, and missed occupancy deadlines. Yet many architectural firms and general contractors submit sets that are technically incomplete without realizing it.

A permit-ready MEP drawing set is not simply a polished schematic. It is a documentation package structured to satisfy regulatory scrutiny from the Authority Having Jurisdiction. In today’s construction environment, where AHJ requirements vary by region and code cycles update regularly, meeting that standard requires more than basic layouts.

AHJs now require drawings that show HVAC zoning, electrical service configurations, plumbing risers, equipment schedules, and code-referenced annotations. Accurate system coordination, complete technical specifications, and verified system integration are the baseline — not optional additions.

When permit reviewers detect inconsistent calculations or ambiguous layouts, they call for corrections. The consequence is that projects get delayed. This makes architects and general contractors rely on MEP drawing prowess to meet occupancy deadlines and avoid rework.

This article will outline the essential elements of a permit-ready MEP package and explain its importance in the current construction landscape.

What AHJs Actually Look for in an MEP Permit Submission

Approval-ready MEP drawing sets ought to demonstrate holistic compliance with regional building codes and national guidelines. AHJs use fundamental requirements to review submitted documentation.

These requirements are grounded in three model codes: the International Building Code (IBC), which governs occupancy and structural requirements; the National Electrical Code (NFPA 70), which covers all electrical system design; and the International Mechanical Code (IMC), which governs HVAC, ventilation, and exhaust systems. Submitted MEP drawings serve as legal documents and must verify system safety, operational performance, and compliance with these standards at every stage of construction.

The Core Documentation Elements Every Permit-Ready Set Must Include

Permit-ready MEP drawings must include specific technical items that AHJs require for approval. These elements include:

  • Detailed equipment schedules with manufacturer specifications and performance ratings.
  • Complete load calculations confirming required system capacity and safety margins in accordance with ASHRAE 90.1 and the applicable IECC climate zone.
  • Thorough routing diagrams portray spatial coordination among all building systems.
  • Code compliance documentation referencing the adopted editions of the IBC, IMC, NFPA 70, and any state or municipal amendments.
  • Integration plans represent coordination with fire protection and life safety systems.

Together, these components give reviewing authorities everything they need to assess system adequacy and confirm code compliance during the permit evaluation.

The Regulatory Codes That Govern MEP Permit Approval in the U.S.

AHJ approval processes have evolved significantly, requiring compliance with multiple regulatory frameworks governing MEP design and installation.

The International Energy Conservation Code (IECC) directly governs HVAC equipment selection by setting minimum efficiency ratings, insulation values, and envelope performance thresholds that vary by climate zone. Where states have adopted their own energy codes, such as California Title 24, those take precedence over the base IECC, and MEP documentation must explicitly reference the adopted edition and any state amendments.

The NFPA suite of codes governs the integration of fire protection systems across three primary standards: NFPA 13 for sprinkler system design and installation, NFPA 72 for fire alarm and signaling systems, and NFPA 101 (Life Safety Code) for occupancy-specific egress and life safety coordination. Each requires explicit cross-referencing in MEP documentation.

ASHRAE Standard 90.1 sets minimum energy-efficiency requirements for commercial building HVAC systems, lighting power density, and building-envelope performance. Most U.S. jurisdictions accept ASHRAE 90.1 compliance as an alternative path to IECC compliance for commercial projects.

What Permit-Ready Mechanical Drawings Must Demonstrate

Mechanical drawings must demonstrate complete system integration and verified performance to satisfy permit requirements. HVAC load calculations must confirm equipment sizing based on envelope performance, building occupancy, and operational requirements, and must comply with ASHRAE Standard 90.1 efficiency thresholds for the relevant IECC climate zone. When mechanical ventilation rates are involved, calculations must also meet the ASHRAE Standard 62.1 minimums for the applicable occupancy classification.

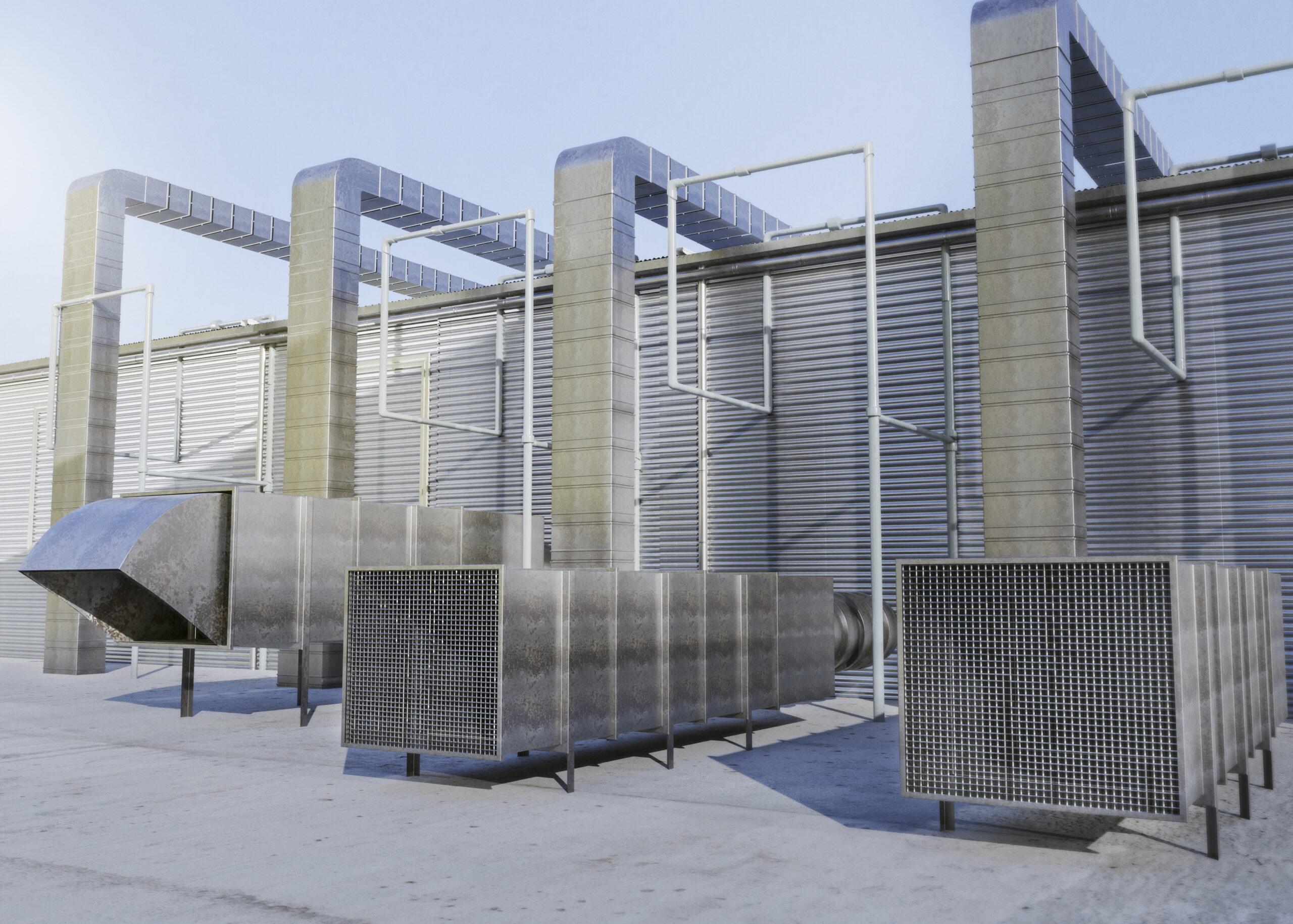

Ductwork layouts must show routing, sizing, and connection details for every zone, with sufficient clearances documented for maintenance access. Ventilation rates must meet the minimums established by ASHRAE Standard 62.1 for each occupancy classification present in the building, with outdoor air quantities and exhaust rates documented in accordance with the IMC.

Electrical Drawing Requirements for NEC Compliance and Permit Approval

Electrical drawings for permit submission must demonstrate full compliance with NFPA 70 (National Electrical Code), covering power distribution, safety system integration, and emergency power provisions.

  • Power distribution diagrams must show service entrance configurations and panel schedules in sufficient detail for reviewers to verify load capacity and circuit protection.
  • Branch circuit layouts must include overcurrent-protection sizing and grounding-system details that comply with NEC requirements.
  • Photometric calculations must accompany lighting layouts to demonstrate that illumination levels and lighting power density meet the minimums set by ASHRAE 90.1 and the applicable occupancy requirements under NFPA 101.
  • Emergency power integration must document backup energy capacity and automatic transfer switching configurations in compliance with NFPA 110, and must show coordination between the normal and emergency distribution panels.
  • Fire alarm and telecommunications drawings must be coordinated with all other building systems to confirm spatial compatibility and signal integrity.

Together, these components confirm that electrical systems meet NFPA 70 requirements for the relevant occupancy type, with fire alarm systems additionally referencing NFPA 72 and emergency power systems referencing NFPA 110.

What the Documentation Must Cover for Plumbing and Fire Protection

Plumbing documentation must include water supply calculations that verify adequate pressure and flow rates for all fixtures, drainage system layouts with correct sizing and slope, and fixture schedules confirming compliance with the International Plumbing Code (IPC),  or the Uniform Plumbing Code (UPC) in Western U.S. jurisdictions, and applicable water conservation requirements.

Waste and vent systems should also be in good working order. They require accurate isometric drawings that show appropriate sizing and slope requirements. Another vital aspect of this provision is that fire protection systems demand perfect coordination with structural and architectural components. This is to ensure ideal coverage and accessibility for maintenance operations.

Sprinkler layouts must show head spacing, water supply capacity, and connection to the alarm system in accordance with NFPA 13. Hydraulic calculations must verify system performance for the relevant occupancy classification as defined by NFPA 13, and accessibility documentation must meet NFPA 25 maintenance requirements.

Quality Control Checks That Prevent Permit Rejections

Complete quality control means ensuring permit-ready drawing precision and regulatory adherence. It involves:

  • Interdisciplinary coordination review: Each MEP discipline is checked against the others to confirm that systems do not conflict spatially or operationally, and that all code requirements are met across the full set.
  • Calculation verification: Load calculations, equipment sizing, and performance specifications are independently checked to confirm they support the design intent and meet code minimums.
  • Drawing accuracy check: Dimensions, annotations, and specifications are reviewed for internal consistency across all sheets to catch discrepancies before they reach the reviewer.
  • Code compliance audit: Each drawing is checked against the adopted editions of the IBC, IMC, NFPA 70, IPC or UPC, NFPA 13, and ASHRAE 90.1, including any state or municipal amendments that modify the base code requirements for the project jurisdiction.
  • Constructability review: Installation sequences and site feasibility are assessed to confirm that the design as drawn can be built without conflicts or coordination issues in the field.

These procedures are of great value. They can shorten permit review cycles and aid efficient approval procedures that uphold project schedules.

How BIM and Cloud Platforms Support MEP Drawing Accuracy

BIM platforms have become central to producing accurate, permit-ready MEP documentation. 3D coordination within these platforms identifies system conflicts before they appear in submitted drawings, and integrates directly with calculation software and automated drawing generation tools to maintain consistency across all disciplines.

Cloud-based collaboration platforms enable live coordination among design teams, reviewers, and project stakeholders throughout the documentation process. Together, these tools support faster review cycles and more reliable approval outcomes. Version control systems ensure every stakeholder is working from the current drawing set, reducing the on-site conflicts and change orders that arise from outdated documentation.

Energy Modeling and Sustainability Requirements in MEP Permit Sets

Energy modeling is now a standard requirement in MEP permit submissions across most U.S. jurisdictions. Calculations must validate HVAC system efficiency and building envelope performance against the thresholds set by the adopted IECC edition, or demonstrate equivalent compliance through ASHRAE Standard 90.1. Where renewable energy systems are included, their integration must also be documented in accordance with the applicable state energy code.

Sustainable design documentation must address water-conservation measures, indoor-environmental-quality provisions, and energy-efficient system selections. For projects pursuing green building certification, these elements must align with the relevant LEED credit requirements or the applicable jurisdiction’s green building code, many of which reference ASHRAE Standard 189.1 for high-performance building criteria.

Conclusion

Permit-ready MEP documentation is the foundation for project timelines, budget certainty, and regulatory approval. In a landscape where AHJ requirements grow more detailed with each code cycle, the quality of the drawing set determines whether a project moves forward or stalls.
